Sidewinder’s Solar Electronic Timer can be used with Sidewinder’s pneumatic pumps, or other pneumatic metering chemical pumps.

Sidewinder’s Solar Powered Electronic Timer (SET) provides an alternative to the normal timers on pneumatic metering pump applications where the air/gas supply has excessive moisture and contaminants causing operational problems for the metering pump.

The electronic solenoid along with the SET, provides a reliable, accurate way to adjust pump flow rates.

The operational design of the solenoid also eliminates the bleed-by experienced by the standard barrel style metering pump timer. This reduces hydrocarbon emmissions to the atomosphere.

Categories: Chemical Injection Metering Pump, Chemical Injection Pump, Chemical Metering Pump, Chemical Pump, Metering Pump, Methanol Injection Metering Pump, Methanol Injection Pump, Methanol Metering Pump, Solar Electronic Timer

Description
Additional information

Description

PDF Documents
Solar Electronic Timer Brochure
SET Operating Instructions

Applications

Solenoid operates with wet and dirty supply gas.
Will not stall
Repeatable
Accurate
Reliable
Reduce hydron carbon emissions by eliminating bleed by in timer control valve

Features

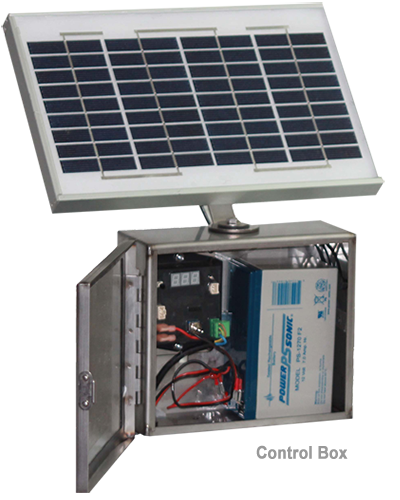

10-Watt Solar Panel with built in solar charge controller
12 volt sealed battery
Stainless Steel Control box
Universal mounting bracket
Solar panel mounts to control box

Electronic Timer with digital read out, provides ease of setting pump flow and has port for optional temperature probe.

Two settings for volume control

0-60 SPM in 1 SPM increments
0-60 SPH in 1 SPH increments
Provides flow rates less than 1 quart per day

Temperature Probe Option for Methanol Applications

Activates at 40 F
Shuts off at 50 F

Additional information

Weight	20 lbs
