E Series Chemical Metering Pump

Meets API 675, 3rd Edition, June 2014 with exceptions

Model 42E Chemical Metering Pump

  • One quarter inch plunger
  • 2.25 inch piston
  • 80:1 amplification ratio
  • Working pressures to 10,000 PSI
  • Flows to 70 QPD  (18 GPD)

Model 62E Chemical Metering Pump

  • Three eighths inch plunger
  • 2.25 inch piston
  • 36:1 amplification ratio
  • Working pressures to 5,400 PSI
  • Flows to 155 QPD  (39 GPD)

Model 82E Chemical Metering Pump

  • One half inch plunger
  • 2.25 inch piston
  • 20:1 amplification ratio
  • Working pressures to 3,000 PSI
  • Flows to 275 QPD  (69 GPD)

Description

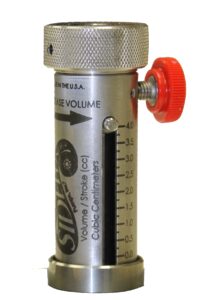

“E Series” Micrometer Stroke AdjusterCylindrical pump attachment with dedicated graduated scales

  • Micrometer Stroke Adjuster
    dedicated with graduated scales
    for ¼”, ⅜”, ½” respectively.
  • All materials are 316 SS
  • Volume given in cubic centimeters (cc).
  • Stroke length given in inches (in) and
    millimeters (mm).
  • Meets: API 675 Standard, 3rd Edition, June 2014.



Additional information

Weight 8.0 lbs
